Front of the Engine

11/27/09:

Cleaned all of the parts I bought this week for the front of the engine, and then test fit them.

Here is the right idler pulley in place:

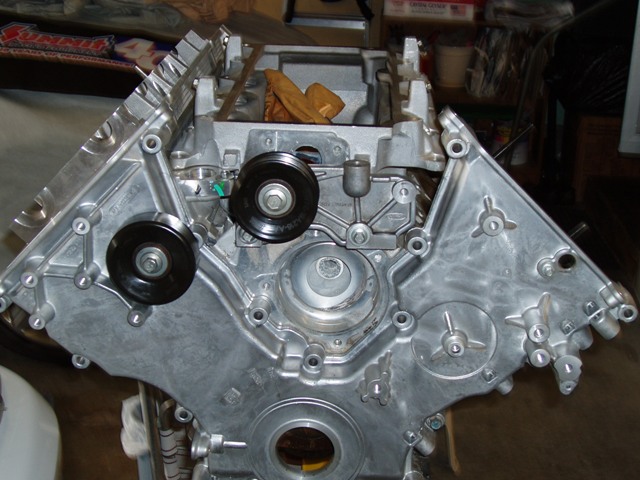

Top Idler Pulley Assembly:

Pulley Bridge Studs:

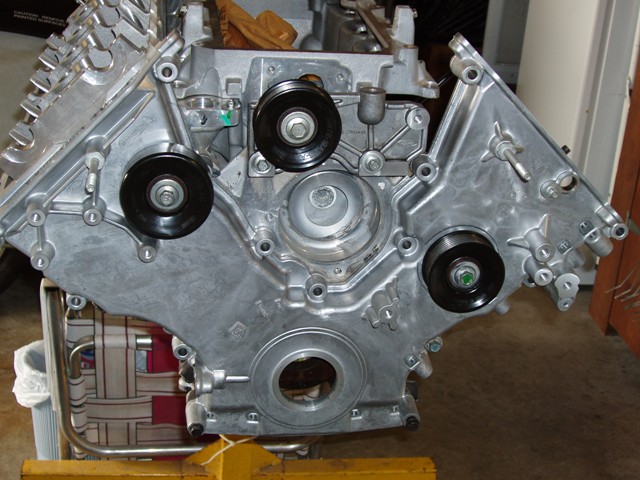

Left Idler Pulley:

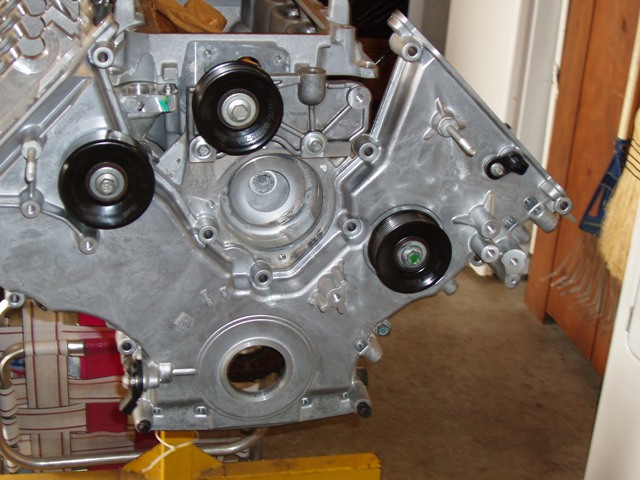

Crank & Cam Position Sensors:

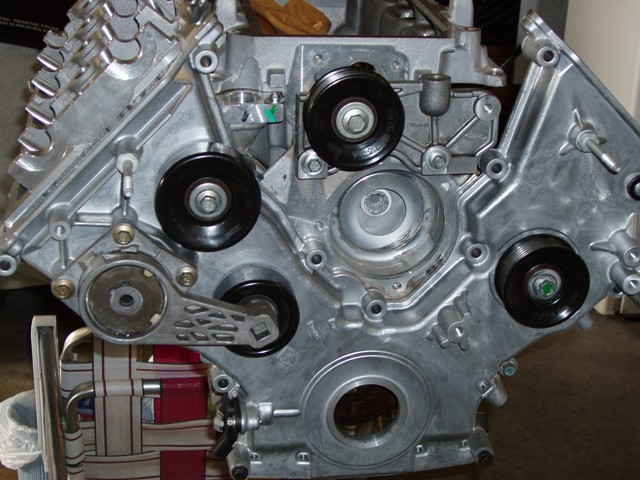

Belt Tensioner:

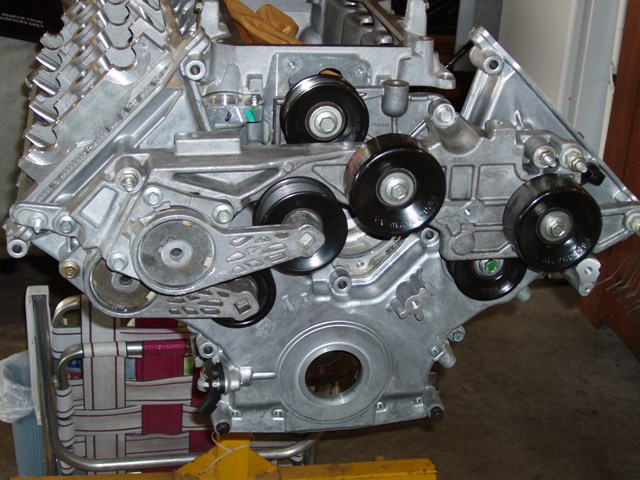

Pulley Bridge:

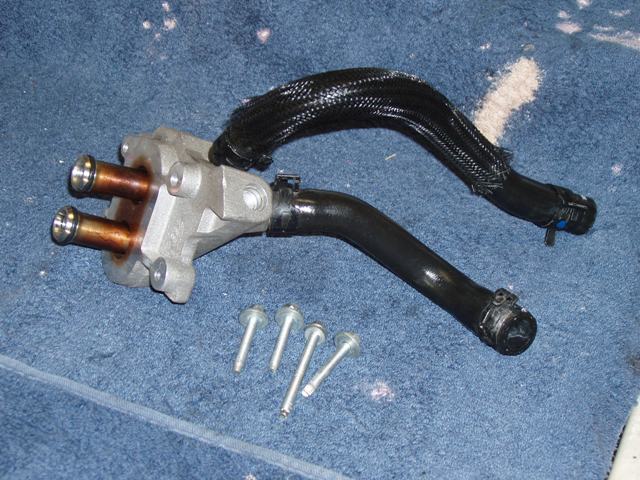

Intercooler Heat Exchanger Flange:

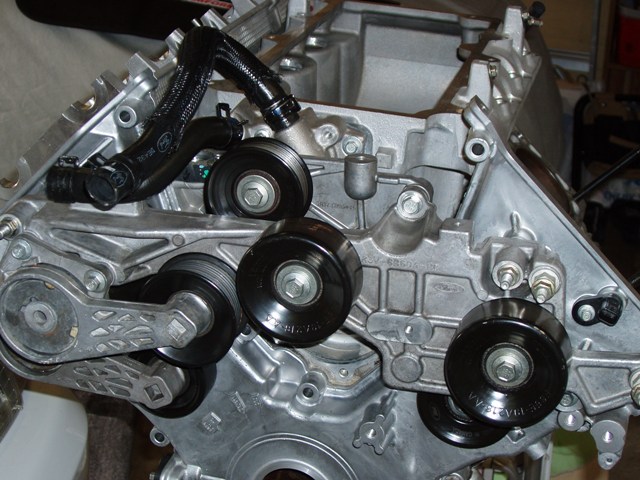

Intercooler Flange Installed:

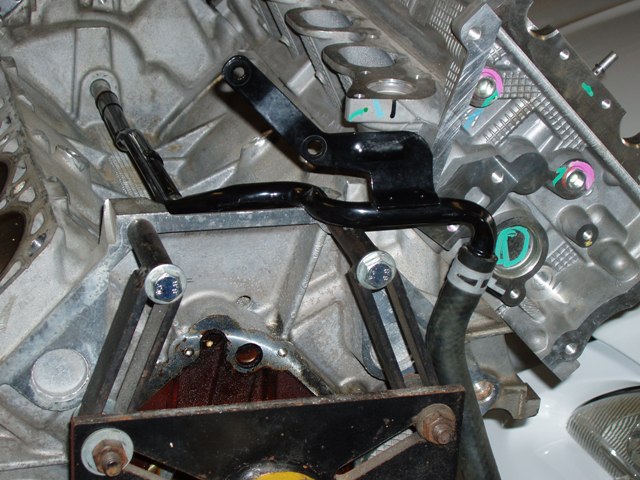

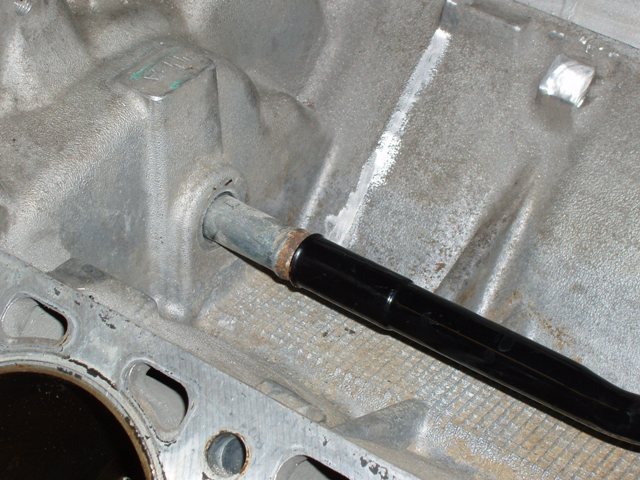

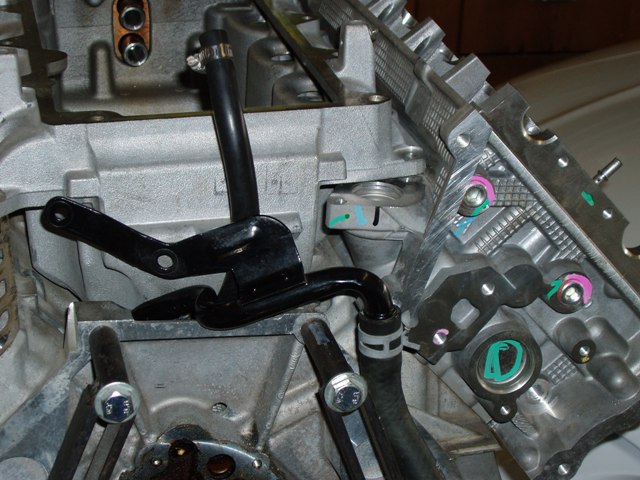

The block nipple behind the water pump of the Teksid block does not fit the water pipe.  I need to figure out if I need to replace the nipple with one from an 03 Cobra block or if a water pipe from a 96-98 Cobra will work.  I also need to know what the pipe bolts to at the back of the engine.

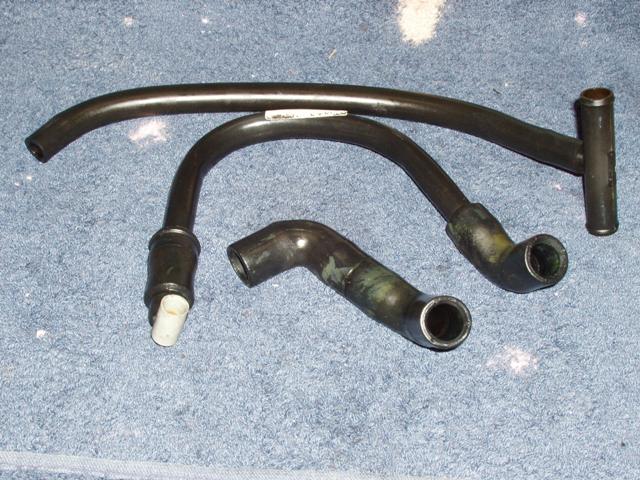

I have no idea how these PCV hoses go together or how the PCV system works:

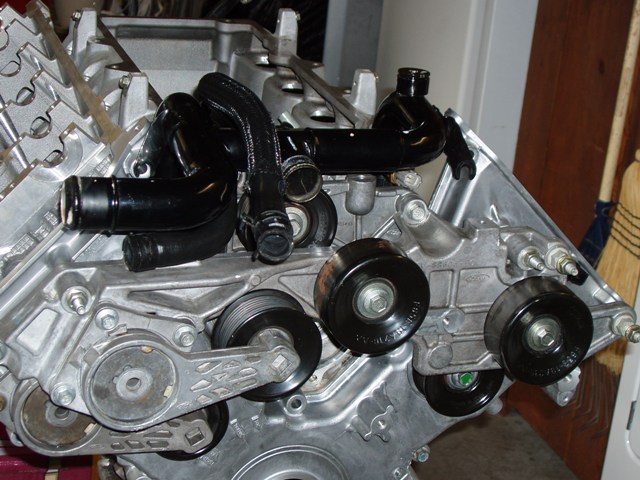

Crossover Pipe:

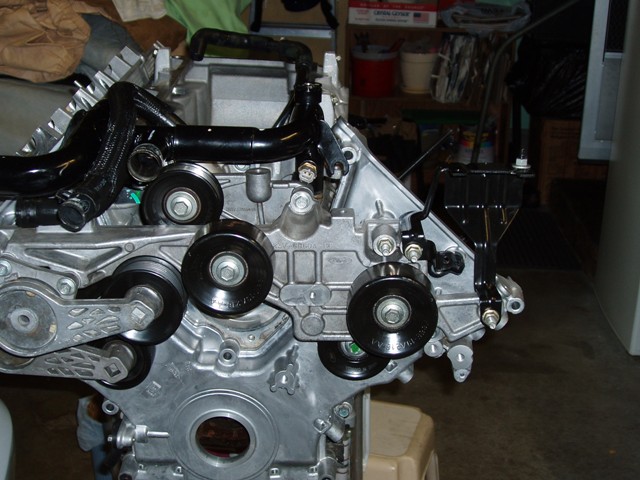

Here is the power steering reservoir bracket installed:

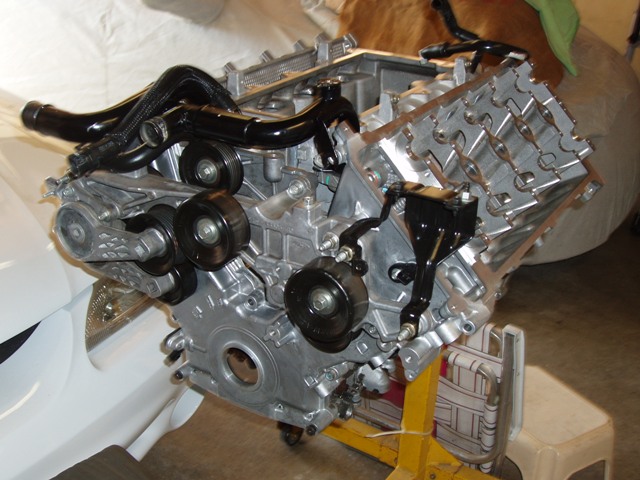

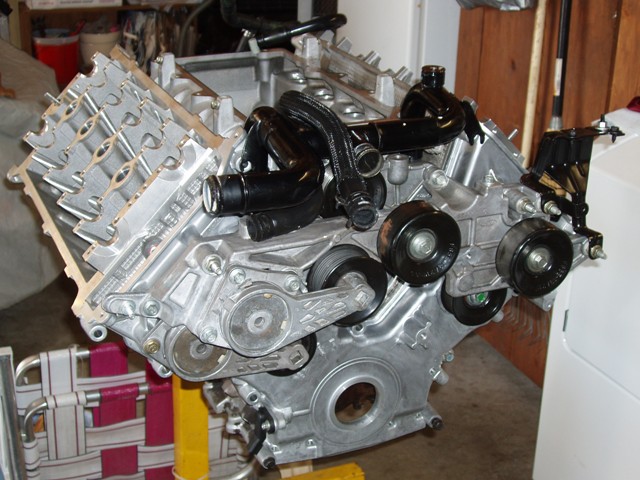

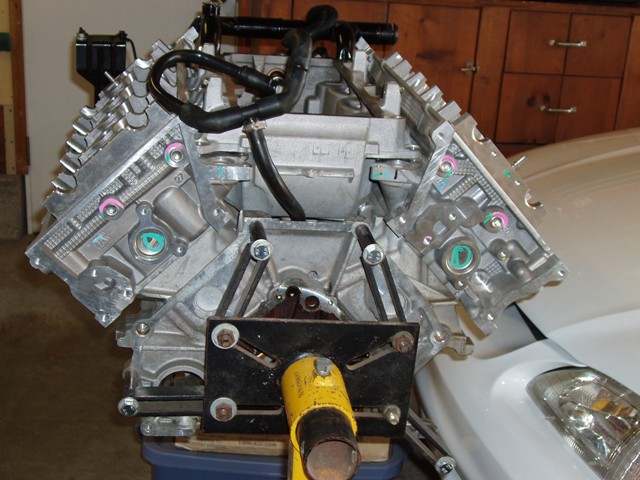

Here are a couple of pictures with the heads on:

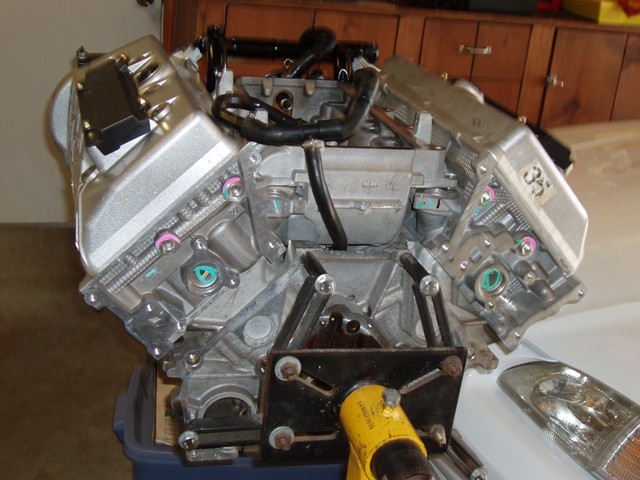

Here are pictures with the valve covers on:

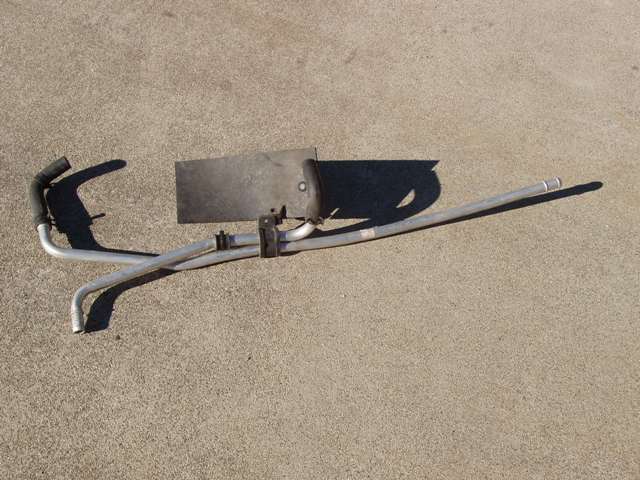

Here are two of the 03/04 Cobra intercooler pipes:

12/10/09:

Received the 03 Cobra oil cooler to block adapter, 03 Cobra oil cooler and bolts that I ordered from the local Ford dealer to day.  I bought the adapter and oil cooler new so I would not have to worry about my oil system getting contaminated with metal shavings from another engine.  FYI, the oil cooler to block adapter is part number F8ZZ-6881-AA.  The gasket is F6AZ-6840-aa and the four bolts come as a package, part number N806156-S437.

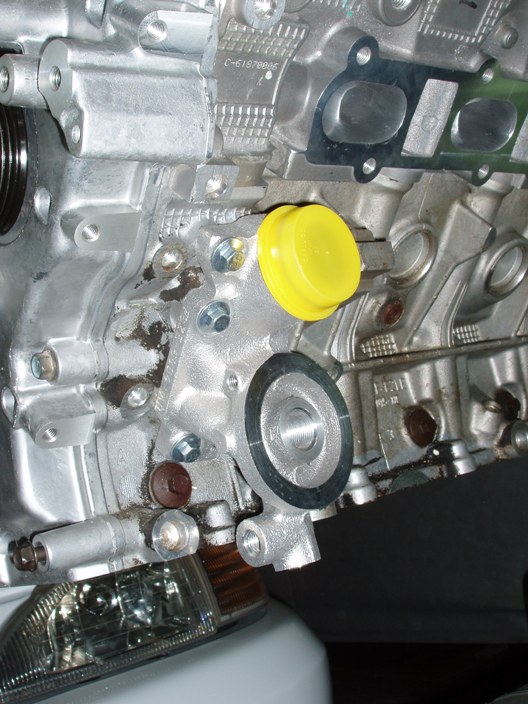

Here is the oil cooler to block adapter test fit to the block:

FYI, the threaded hollow Allen shaft that holds the oil cooler to the adapter comes with the oil cooler, so you do not need to buy that if you buy a new oil cooler.  The 03 Cobra oil cooler is part number 2R3Z-6A642-AA.

12/22/09:

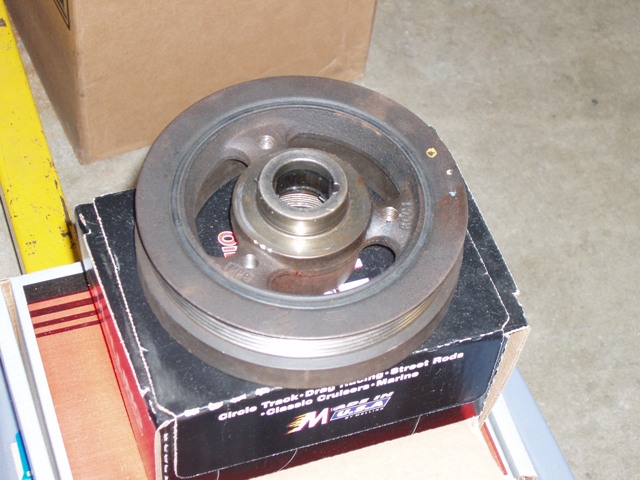

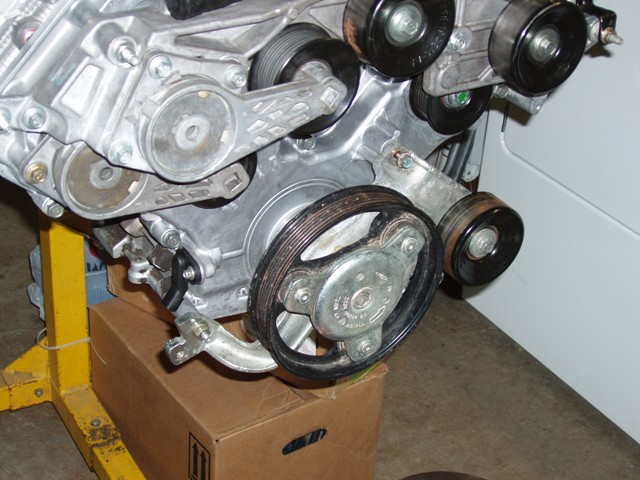

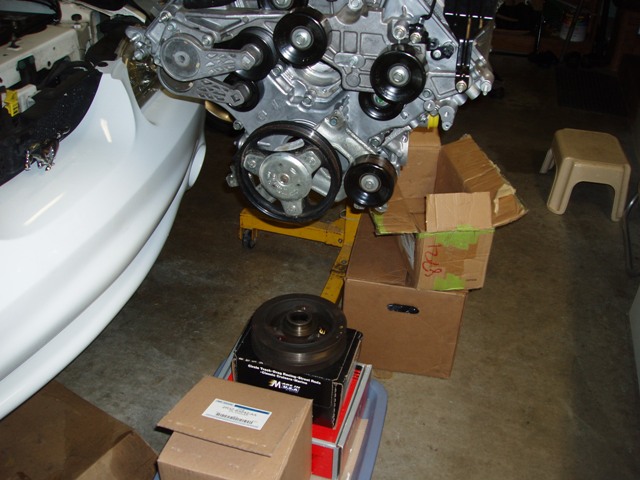

Received the supercharger drive pulley and cage, along with the harmonic balancer, so I test fit the pulley:

12/23/09:

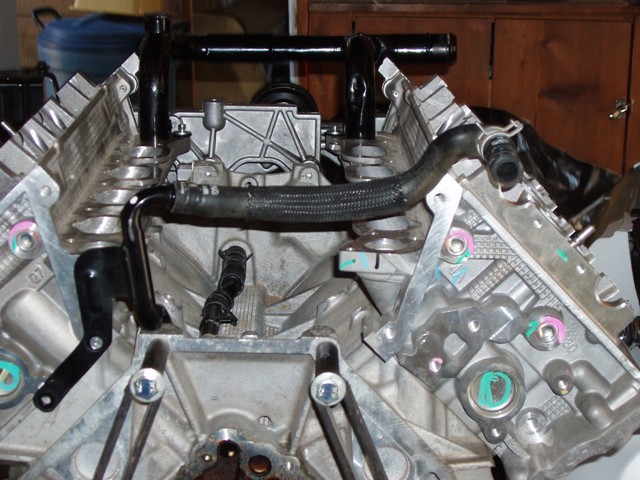

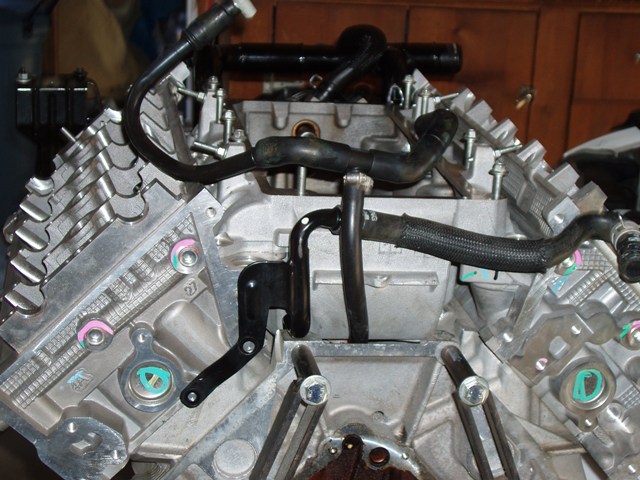

Cleaned up the 96 Cobra water pipe and hoses, and test installed them on the block:
